Industrialny PC - Advantech PCM-9363N

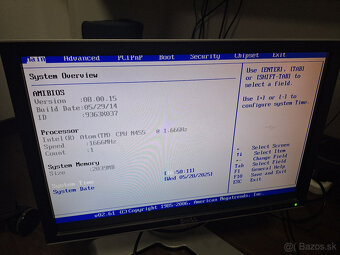

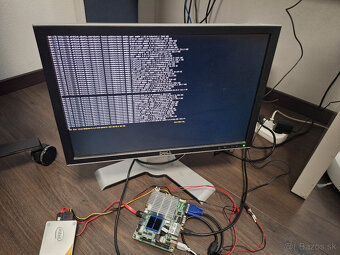

Predavam Industrialny PC - Advantech PCM-9363N, vid foto - specka nizsie. Pouzivany ako Ubuntu server.

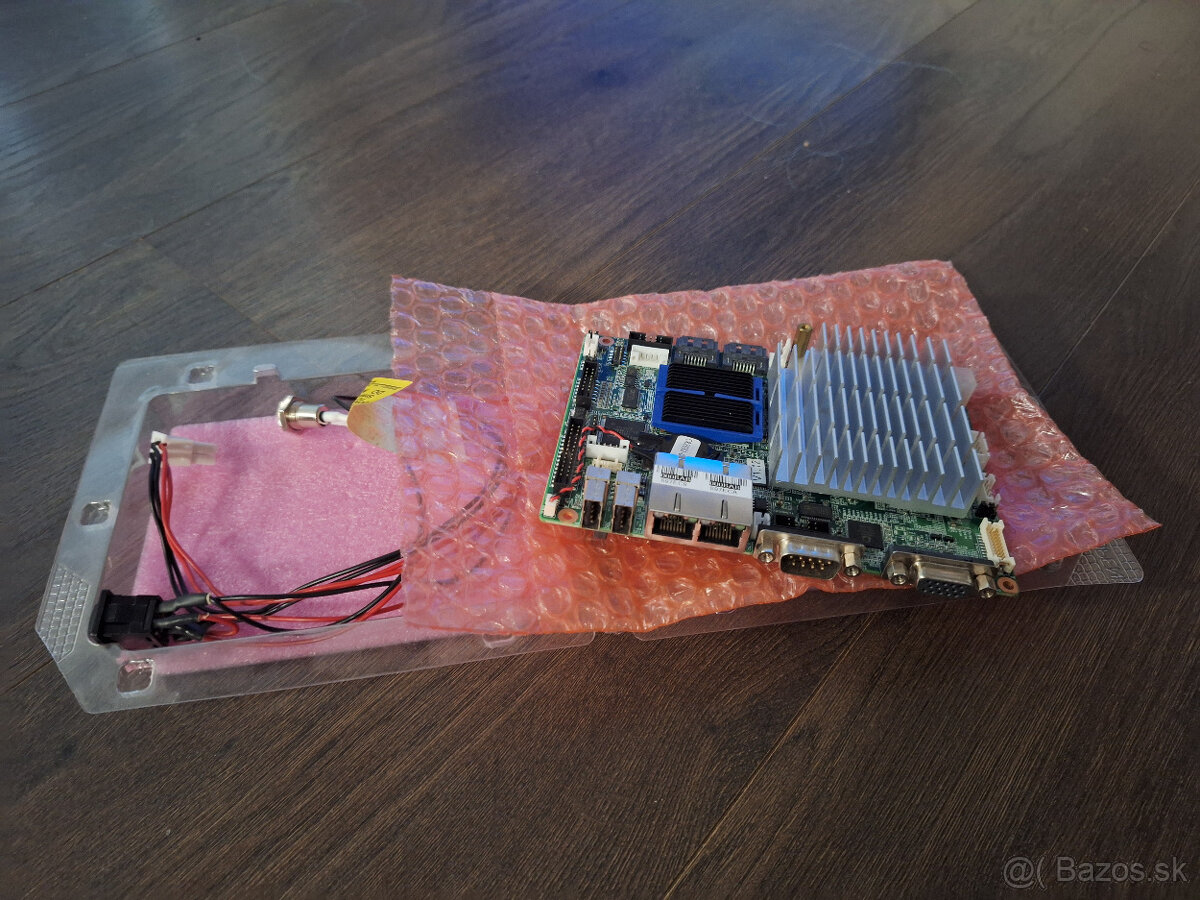

Pridavam napajanie, adapter, a kable na I/O (co som nasiel, ale myslim, ze vsetky potrebne, i.e. SATA, COM, Audio, etc...)

Datasheet: mouser.sk/datasheet/2/638/PCM-9363_DS(01.15.14)20140205145206-467634.pdf

- Bez HDD
- Posielam do 2-3dni - hned ako to zabalim.
- Posielam len cez Packetu, +5EUR
- na dobierku, po zaslani 5EUR vopred
- odobny odber mozny
- Pisat email, cislo vymyslene.

##### Parametre z Datasheetu #####
CPU Intel Atom N455 Single Core 1.66 GHz Processor
System Chipset Intel N455/D525 + ICH8M
Technology DDR3 667 MHz for N455 2GB for N455
Chipset Intel Atom Processor N455 1.66GHz/D525 1.8GHz
Graphic Engine Intel Gen 3.5 DX9, MPEG2 Decode in HW
LVDS LVDS: Single channel 18/24-bit LVDS up to WXGA 1366 x 768
VGA Intel Atom N455 Single Core up to 1400 x 1050 (SXGA)
Dual Display VGA+LVDS
2x Speed 10/100/1000 Mbps (Supports Wake on LAN)
Controller GbE1 Intel 82567V, GbE2 Intel 82583V
Connector RJ-45 on GbE1, GbE2
Audio Chipset Realtek ALC892

Power Supply Voltage Supports single 12V input, ± 10%
Power Consumption (Typical) PCM-9363N: 0.74 A @ 12 V (8.88 W)

Dimensions (L x W) 146 x 102 mm (5.7" x 4")
Weight 0.64 kg (1.41 lb), weight of total package
Total Height 30.5mm for PCM-9363N

- High Definition Audio (HD), Line-in, Line out, Mic-in
- SATA 2 SATA II (Max. Data Transfer Rate 300 MB/s), 1 internal SATA power connector
- Serial 1 (COM1 supports RS-232) (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV)
- Ethernet 2 (10/100/1000 Mbps)
- VGA 1
- HDMI 1 (Support by request)
- USB 2
- USB 4 x USB 2.0
- Serial 2 x COM (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV)
- COM3 supports RS-232, COM2 supports RS-232/422/485 (Supports RS-485 auto flow control)
- Parallel(LPT) 1
- SMBus 1
- PS/2 KB/Mouse 1
- GPIO 8-bit GPIO
- Expansion Mini PCIe 1 (Full-size)
