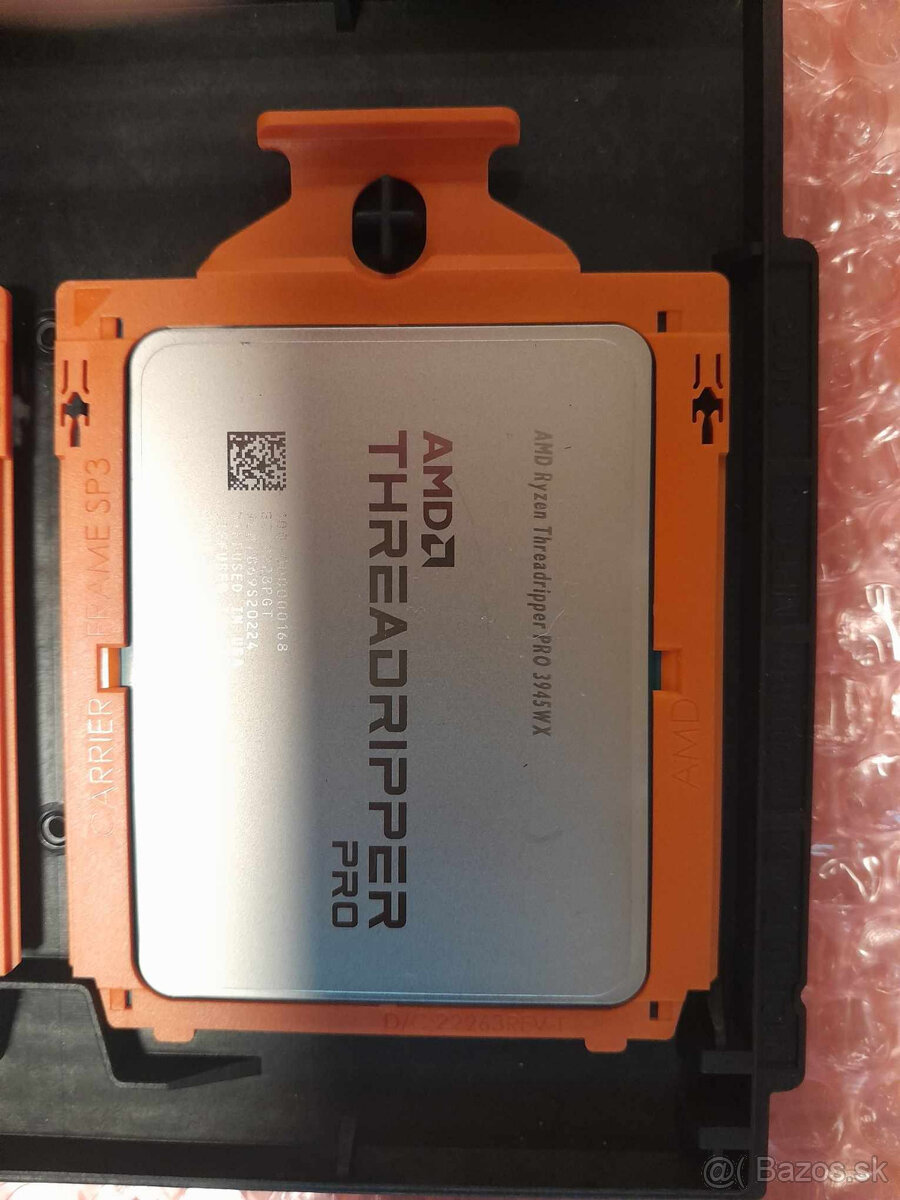

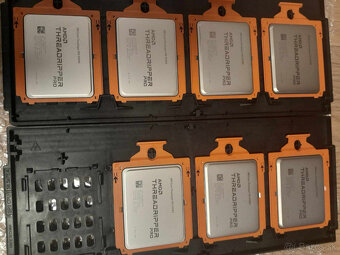

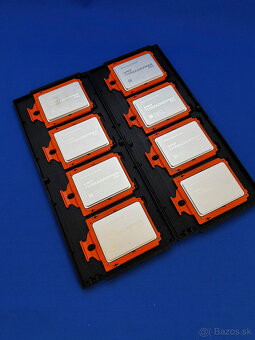

UNLOCKED AMD Ryzen Threadripper PRO 3945WX CPU 4Ghz 12-Core

OEM VERSION, NO LENOVO LOCKED, CAN BE USED ON ANY sWRX8 Motherboard!!!!

Obtained directly from AMD suppliers.

This item is Brand New. FREE shipping within 1 day, with tracking number.

The AMD Ryzen Threadripper PRO 3945WX is a server/workstation processor with 12 cores, launched in July 2020. It is part of the Ryzen Threadripper lineup, using the Zen 2 (Castle Peak) architecture with Socket WRX8. Thanks to AMD Simultaneous Multithreading (SMT) the core-count is effectively doubled, to 24 threads. Ryzen Threadripper PRO 3945WX has 64 MB of L3 cache and operates at 4 GHz by default, but can boost up to 4.3 GHz, depending on the workload. AMD is building the Ryzen Threadripper PRO 3945WX on a 7 nm production process using 3,800 million transistors. The silicon die of the chip is not fabricated at AMD, but at the foundry of TSMC. The multiplier is locked on Ryzen Threadripper PRO 3945WX, which limits its overclocking capabilities.
With a TDP of 280 W, the Ryzen Threadripper PRO 3945WX is extremely power hungry, which means you need top-notch cooling. AMD's processor supports DDR4 memory with an eight-channel interface. The highest officially supported memory speed is 3200 MT/s, but with overclocking (and the right memory modules) you can go even higher. ECC memory is supported, too, which is an important capability for mission-critical systems, to avoid data corruption. For communication with other components in the system, Ryzen Threadripper PRO 3945WX uses a PCI-Express Gen 4 connection. This processor lacks integrated graphics, you might need a graphics card.
Hardware virtualization is available on the Ryzen Threadripper PRO 3945WX, which greatly improves virtual machine performance. Programs using Advanced Vector Extensions (AVX) will run on this processor, boosting performance for calculation-heavy applications. Besides AVX, AMD is including the newer AVX2 standard, too, but not AVX-512.


Type: CPU / Microprocessor
Market Segment: Desktop
Family: AMD Ryzen Threadripper PRO
Model Number: 3945WX
CPU Part Numbers: 100-100000168
Frequency: 4GHz
Maximum Turbo Frequency: 4.3 GHz / 4300 MHz
Socket: sWRX8
Architecture / Microarchitecture

Instruction Set: x86
Microarchitecture: Zen 2
Processor Core: Castle Peak
Manufacturing Process: TSMC 0.007 micron FinFET process
CPUID: 830F10
Data Width: 64 bit
Number of CPU Cores: 12
Number of Threads: 24
Floating Point Unit: Integrated
Caches

Level 1 Cache Size: 16 x 32 KB instruction caches, 16 x 32 KB data caches
Level 2 Cache Size: 16 x 512 KB
Level 3 Cache Size: 4 x 16 MB
Extensions & Technologies

MMX instructions
Extensions to MMX
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
SSE4a
