ASRock H 110 Pro BTC+

Predam tuto uplne novu nikdy nepouzitu Maticnu dosku bohu yial bez zadneho Io pliesku.Klik na meno pozriet aj ine inzeraty. Poprosim volat na mobil.


základná doska, Intel 1151, Intel H110, DDR4 (PC4), ATX, DVI, PCI Express x16 3.0, SATA III, m.2 SATA , USB 2.0, USB 3.1, 7.1 analóg.

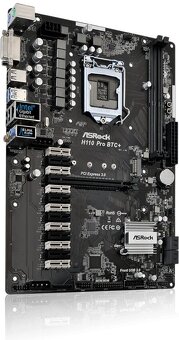

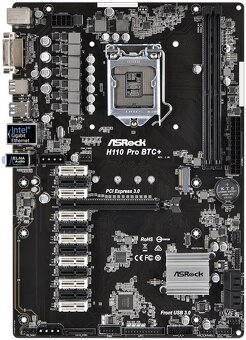

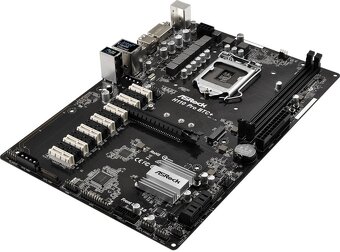

ASRock H110 Pro BTC+
Unique Feature
ASRock Super Alloy
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU
- Supports 7th and 6th Generation Intel Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1151)
- Supports CPU up to 91W
- Digi Power design
- 8 Power Phase design
- Supports Intel Turbo Boost 2.0 Technology
Chipset
- Intel H110
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 2400/2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB*
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15µ Gold Contact in DIMM Slots
*7th Gen Intel CPU supports DDR4 up to 2400; 6th Gen Intel CPU supports DDR4 up to 2133.


**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 64Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 5.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, DRAM, PCH 1.05V Voltage multi-adjustment
Graphics
- Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel HD Graphics
- Gen9 LP, DX11.3, DX12
- HWAEncode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel CPU)
- HWA Encode/Decode: VP8, HEVC 8b; GPU/SWEncode/Decode: VP9, HEVC 10b (For 6th Gen Intel CPU)
- Max. shared memory 1024MB**
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports Accelerated Media Codecs: HEVC, VP8, VP9
- Supports HDCP with DVI-D Port
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port


*Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.


**The size of maximum shared memory may vary from different operating systems.
Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
- Supports Surge Protection
- ELNA Audio Caps


*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel I219V
- Supports Wake-On-LAN (Supported on Black PCIe Slots only)
- Supports Lightning/ESD Protection
- Supports Energy Efficient E
